Το Κέντρο Αριστείας BEYOND του ΕΑΑ παρήγαγε ένα πρώτο διαφορικό συμβολόγραμμα που αφορά τον σημερινό σεισμό στη Ζάκυνθο και στο οποίο δεν ανιχνεύεται κάποια εδαφική παραμόρφωση.

Για την ανάλυση χρησιμοποιήθηκαν δεδομένα Sentinel-1 και η επεξεργασία των εικόνων ξεκίνησε αυτόματα με τη λήψη της πρώτης διαθέσιμης εικόνας μετά τον σεισμό.

Η υπηρεσία geObservatory είναι διαθέσιμη στη σελίδα : του Κέντρου Αριστείας BEYOND και παράγει αυτοματοποιημένα προϊόντα συμβολομετρίας μετά από σημαντικά σεισμικά γεγονότα και ηφαιστειακές εξάρσεις οπουδήποτε στον κόσμο.

Οι χρήστες μπορούν να προβάλλουν και να κατεβάζουν ελεύθερα τα προϊόντα που βρίσκονται στην εφαρμογή geObservatory.

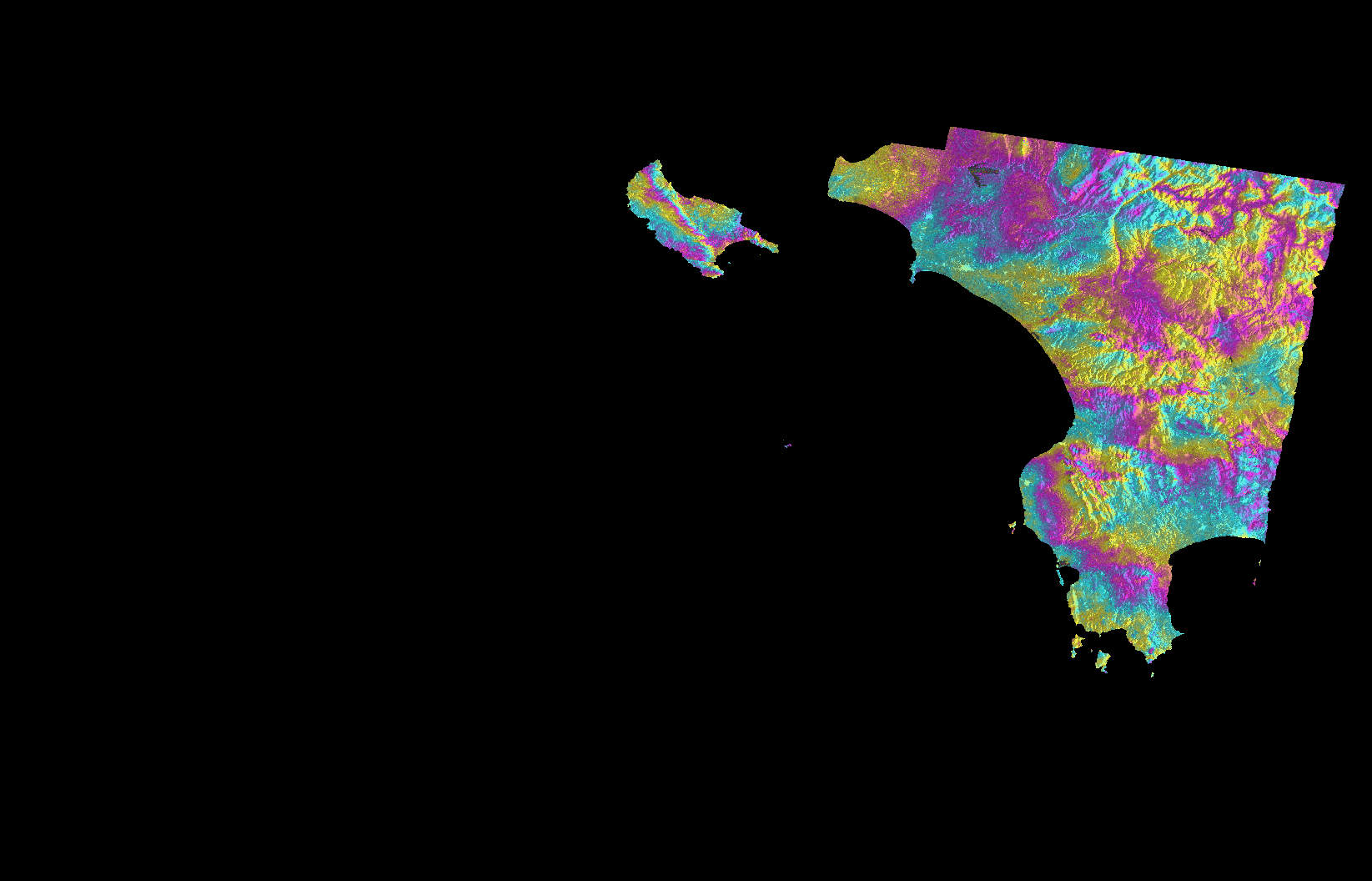

Α quicklook of the differential interferogram produced for today’s earthquake in Zakynthos island, Greece. This is a raw interferogram, and no manual operations for fine-tuning the processing parameters have been applied.
No fringe pattern is evident in the island.

Sentinel-1 data were used and a fully automatic processing engine was activated a few minutes after the earthquake occurrence. This engine is named geObservatory and a beta-version front-end is available here:

Note that this is work in progress and any feedback on the functionality of geObservatory is welcome!

The event’s specific page is available here:

More interferograms will automatically populate this page as new Sentinel-1 data arrive.

Users can freely visualize and download the raw interferograms that are output from the geObservatory application of BEYOND Center Of Excellence.
